Overview
Description

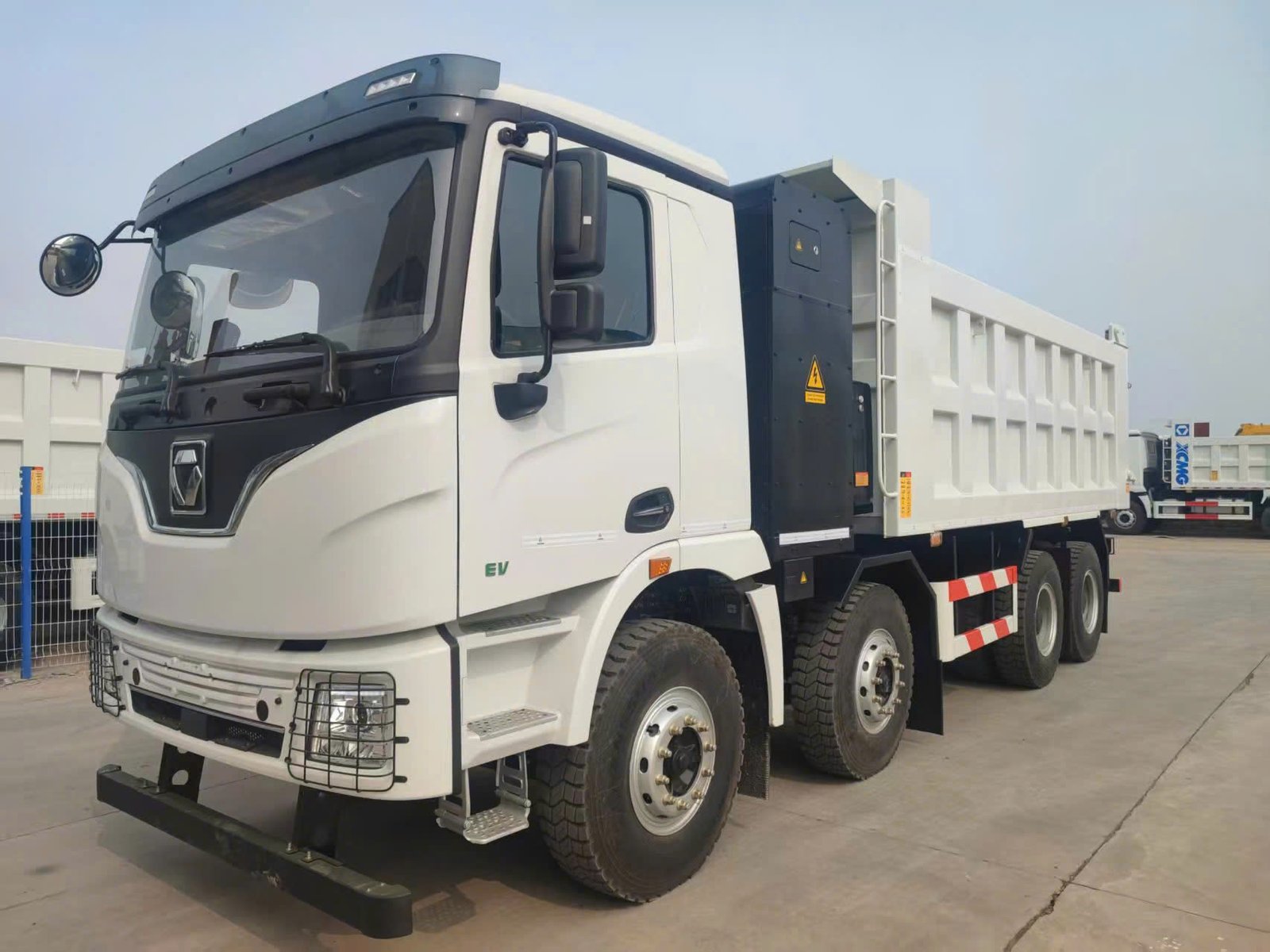

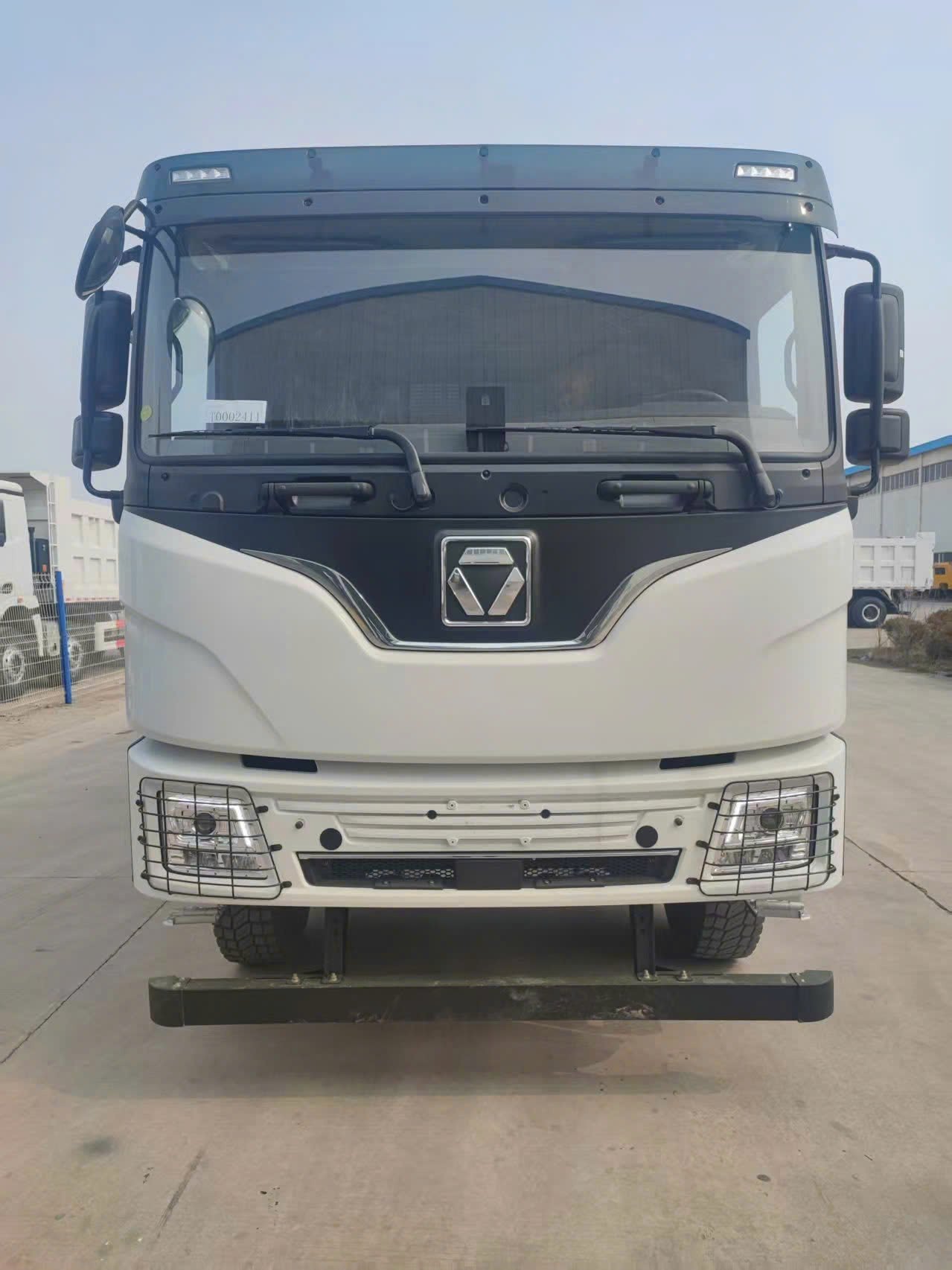

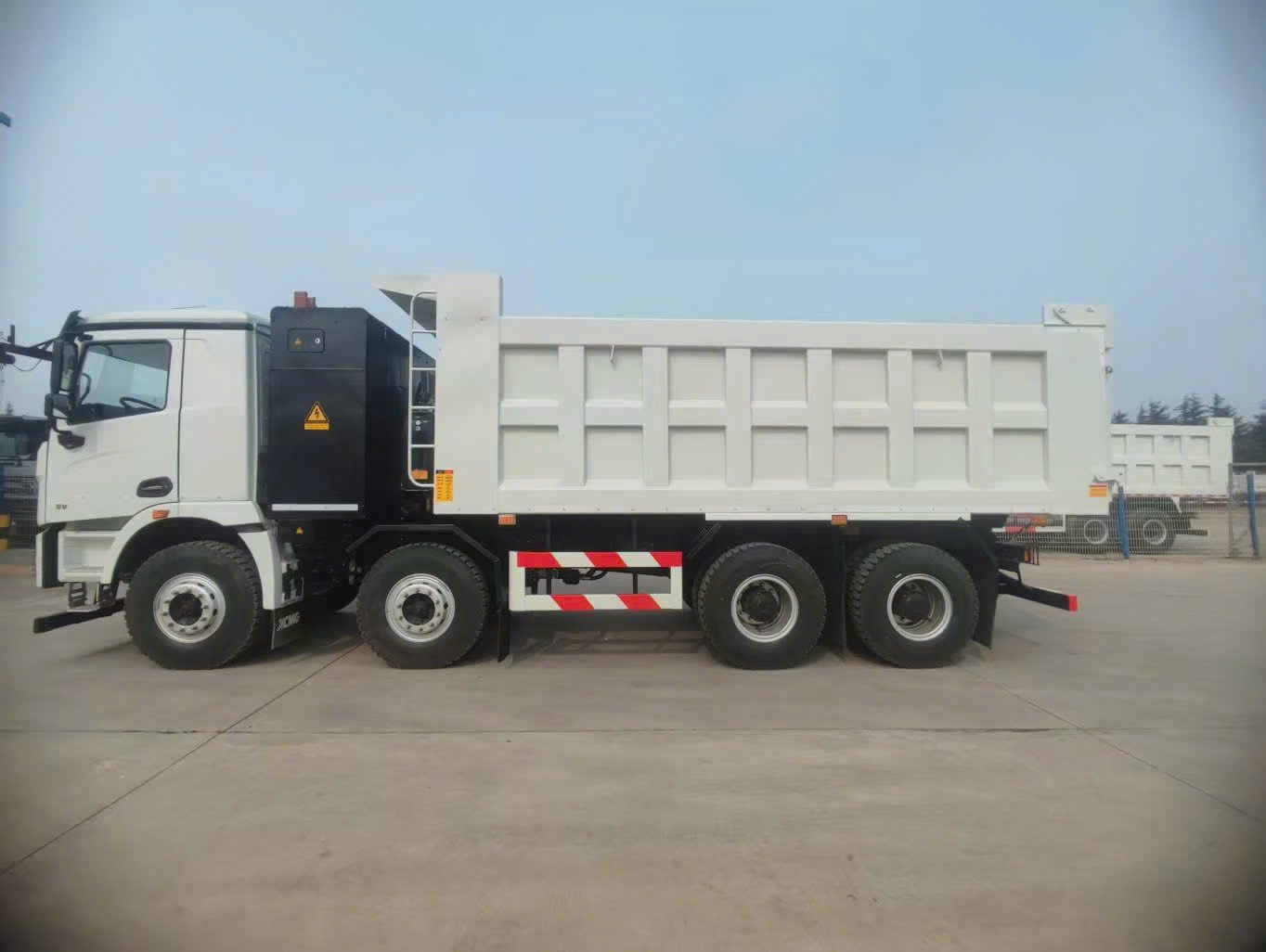

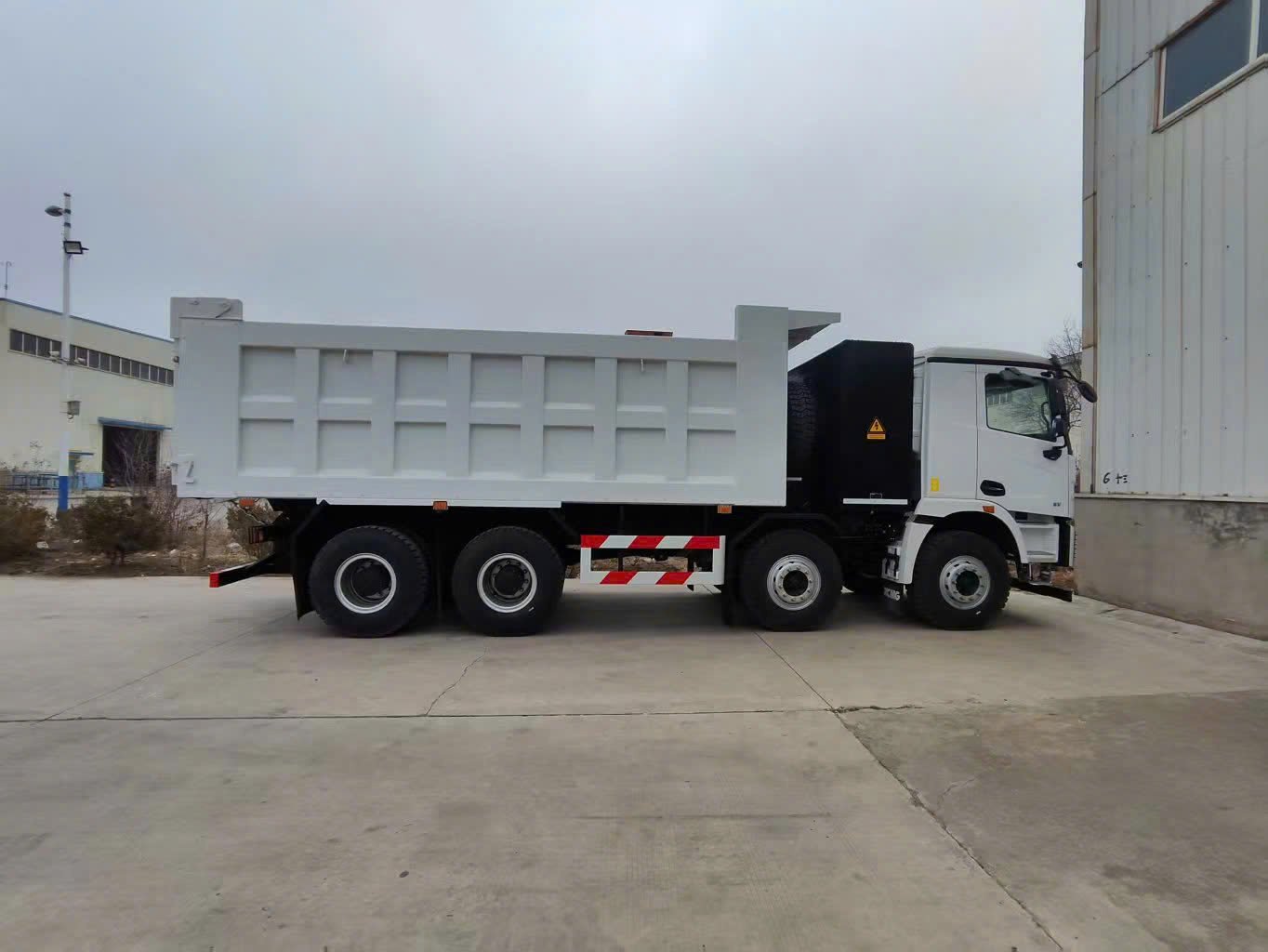

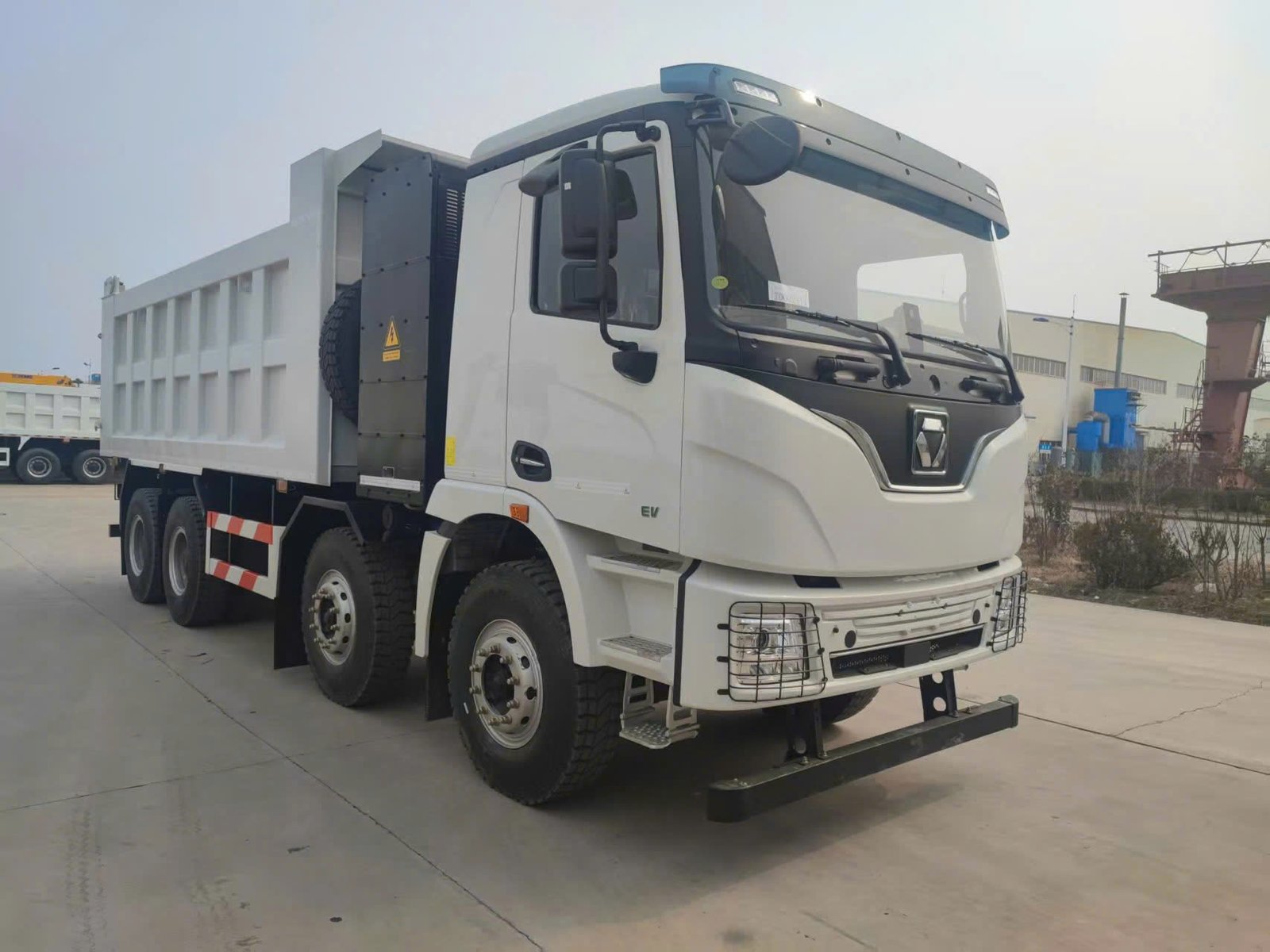

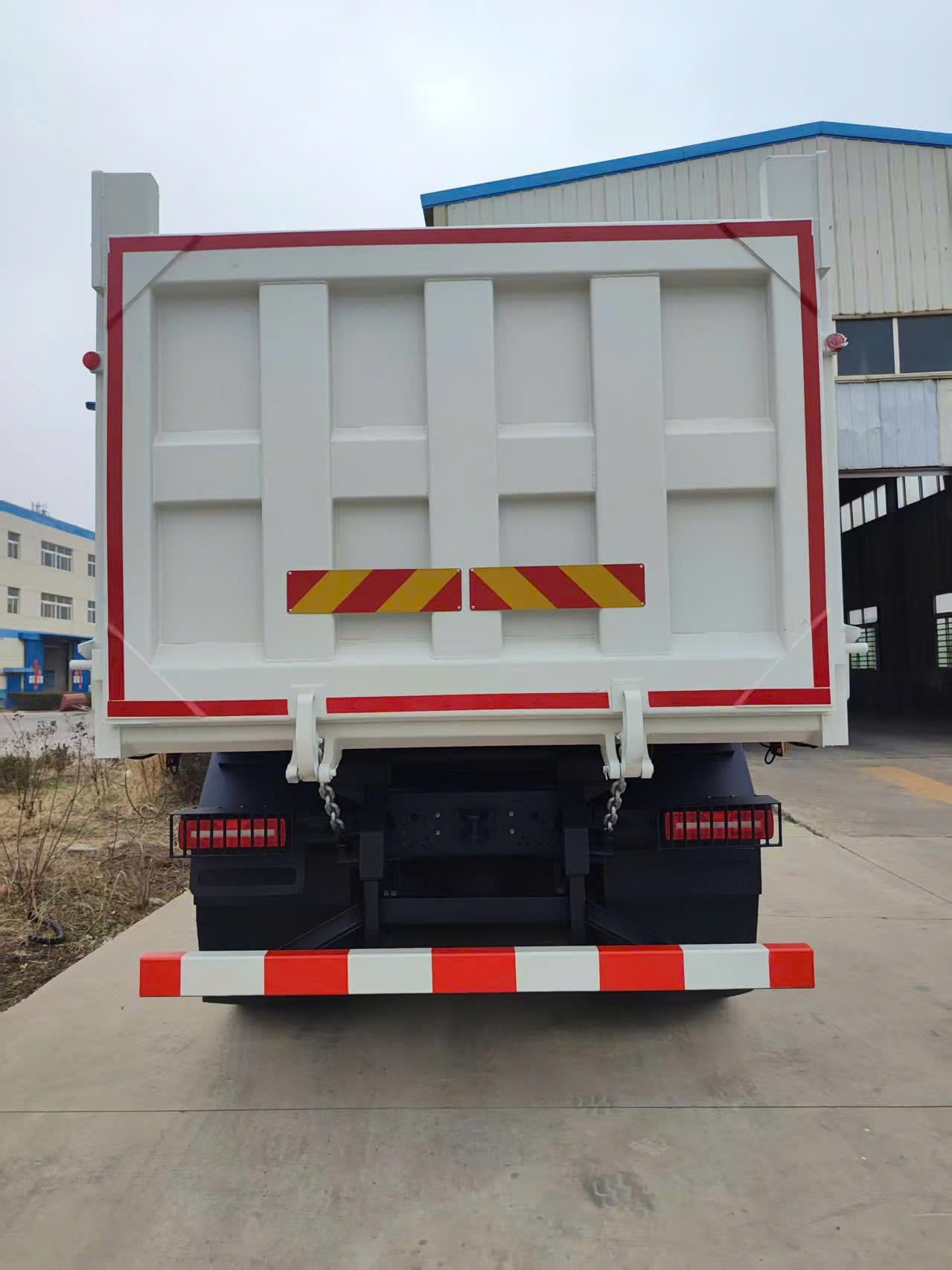

A new generation high-capacity electric dump truck — CATL 400kWh battery with permanent magnet synchronous drive for heavy constuction with zero tailpipe emissions.
Vehicle specifications
Max payload
30T
Wheelbase
1180 + 3200 + 1400mm
Frame Dimension
9300 × 2500 × 3600mm
Battery
400.61kWh
Motor Power
550 kW / Torque: 3,060 Nm
Travel range
210 - 250Km
Drive Formula
8×4 (Rear Axle HanDe Z300)
Transmission
4-Speed AMT (Lvkon J4S280)
Charging
36 - 40 minutes (From 20% - 80% with DC charging station)
Brake
Regenerative Braking & Differential Lock
Charging station specifications
Product dimensions (W×D×H)
5400 × 2300 × 1500mm
